CKA Task 11 - Restrict worker2 to type=db Pods

Objective: Configure node worker2 so that only workloads configured for type=db can be scheduled there. After verification, return the node to normal operation.

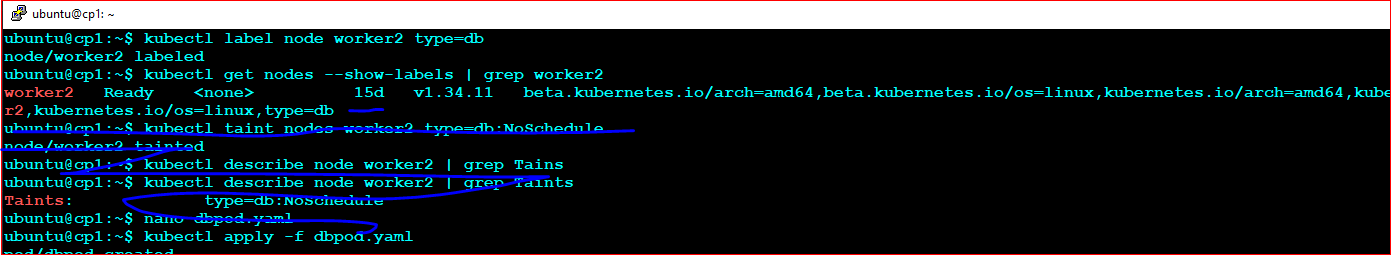

Step 1 - Label worker2

Add a label to identify worker2 as a database node.

    kubectl label node worker2 type=db

Verify:

    kubectl get nodes --show-labels | grep worker2

Your Notes:

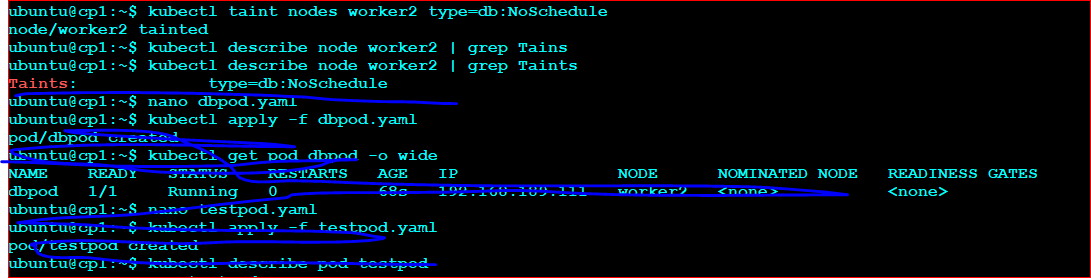

Step 2 - Taint worker2

The taint prevents regular workloads from being scheduled on worker2. Only pods with a matching toleration will be allowed.

    kubectl taint node worker2 type=db:NoSchedule

Verify:

    kubectl describe node worker2 | grep Taints

Expected Output:

    Taints: type=db:NoSchedule

Your Notes:

Step 3 - Create a Pod Allowed on worker2

    apiVersion: v1
    kind: Pod
    metadata:
      name: dbpod
    spec:
      nodeSelector:
        type: db
      tolerations:
      - key: "type"
        operator: "Equal"
        value: "db"
        effect: "NoSchedule"
      containers:
      - name: nginx
        image: nginx

Apply:

    kubectl apply -f dbpod.yaml

Verify:

    kubectl get pods -o wide

Expected:

    dbpod      Running      worker2

Your Notes:

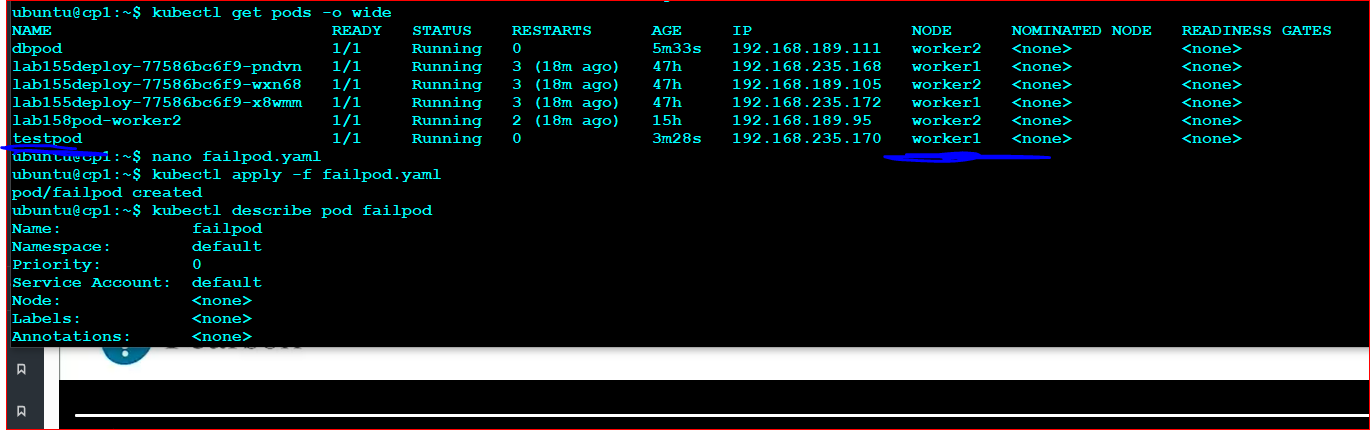

Step 4 - Verify Normal Pods Cannot Use worker2

Create a regular pod without the required toleration.

    kubectl run testpod --image=nginx

Check where it landed:

    kubectl get pods -o wide

Example:

    testpod    Running    worker1

This confirms Kubernetes avoided worker2 because of the taint.

Your Notes:

Important Observation

When you ran:

    kubectl describe pod testpod

You saw:

    Successfully assigned default/testpod to worker1

This means the restriction worked correctly. The scheduler selected worker1 because worker2 was protected by the taint.

Exam Tip:

If a pod lands on worker1 or another node instead of worker2, the taint is successfully influencing scheduling.

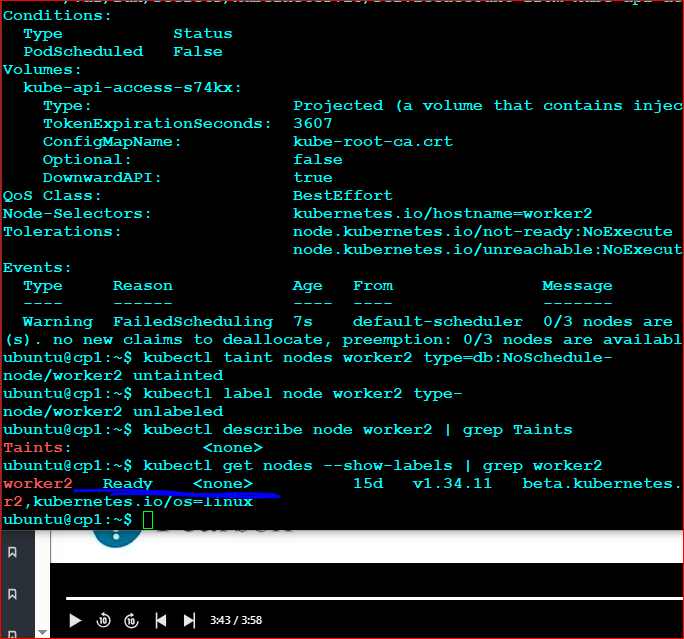

Step 5 - Return Cluster to Normal Operation

Remove the taint:

    kubectl taint node worker2 type=db:NoSchedule-

Remove the label:

    kubectl label node worker2 type-

Verify:

    kubectl describe node worker2 | grep Taints
    kubectl get nodes --show-labels | grep worker2

Expected:

    Taints: <none>

Your Notes:

CKA Exam Memory Trick

Label = Identifies the node.
Taint = Blocks everybody else.
NodeSelector = Finds the node.
Toleration = Allows the pod through.

Remember:

    Label the node
    Taint the node
    NodeSelector the pod
    Tolerate the taint

These four pieces together are one of the most common CKA scheduling tasks.
